Standard Configuration

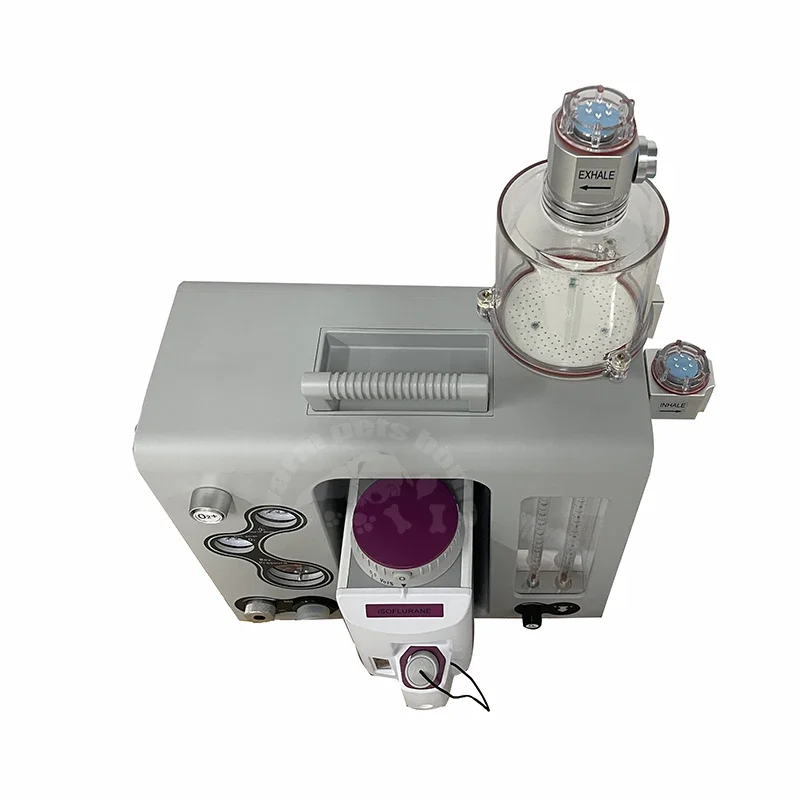

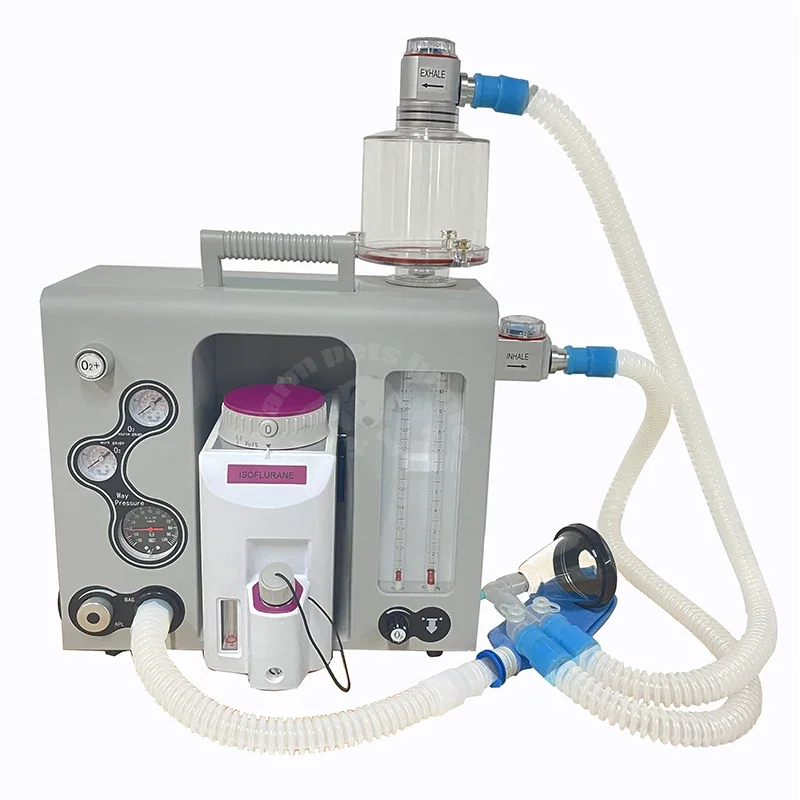

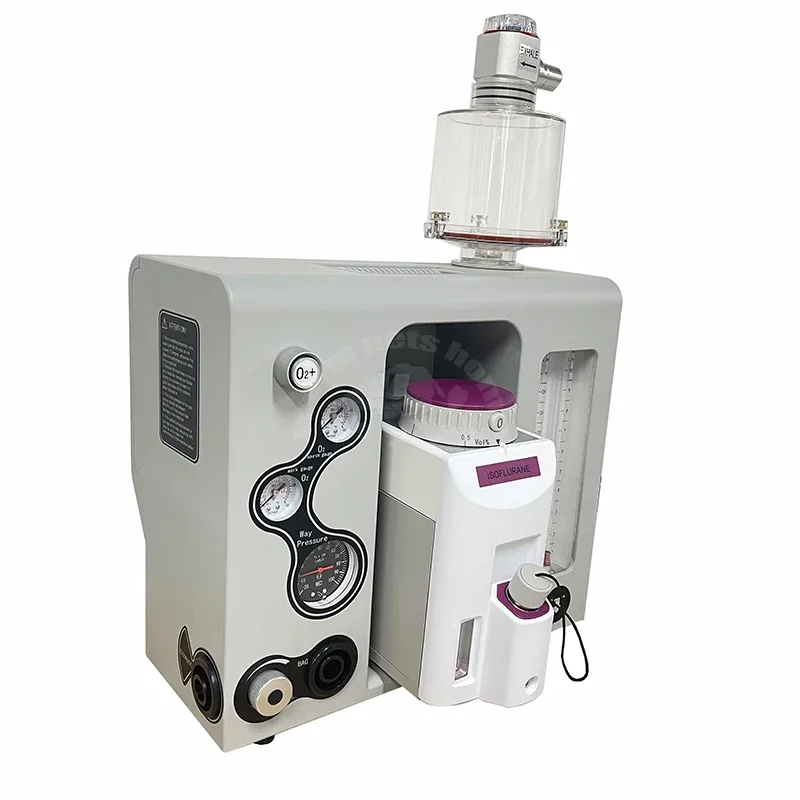

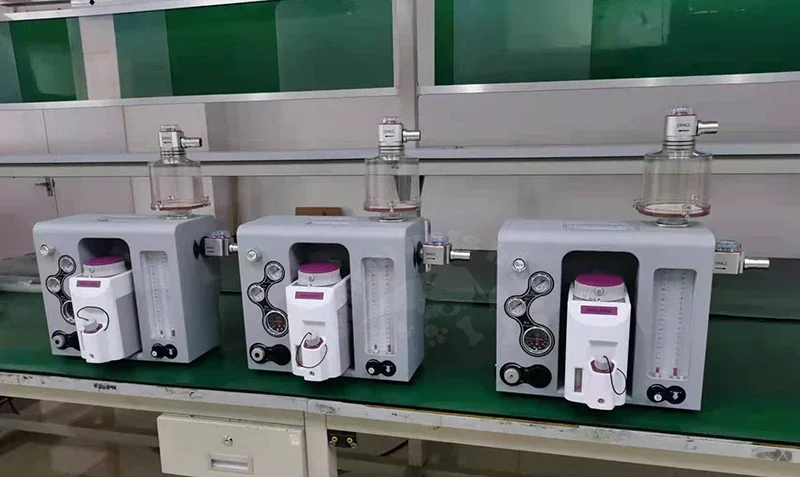

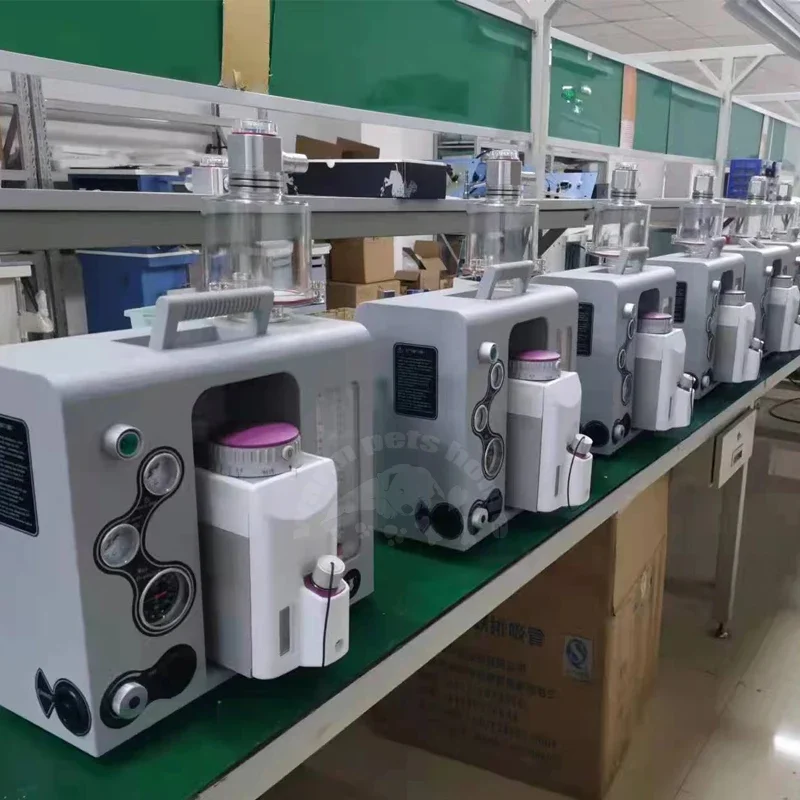

CE approved portable anesthesia machine

Compact light-weight and portable, could be transported by pull-rod case, put on table and assembly on the trolley.

Suitable for small animals, Jackson or Bains Absorber is available

Specifically designed to accomodate low flow

Selectatec-bar and quick change vaporizer mounting device

Professional airtight breathing circuit design, provide the stable gas anesthesia, save anesthesia gas consumption, to ensure a clean operating room and laboratory environment.

External and reusable soda lime canister, easily watch and replace soda lime.

With Oxygen flush function to ensure that clinical anesthesia demand and Oxgyen supply demand.

With APL pressure reducing valve to prevent pressure to hurt the animal, ensure the animal safety .

Wastewater discharge system

Visible inspiration and expiration valve

Could upgrade to Oxygen&N2O or Oxygen&Air flow meter freely

Module rack with polyester medical material with superior spray technology, high strength and light weight.

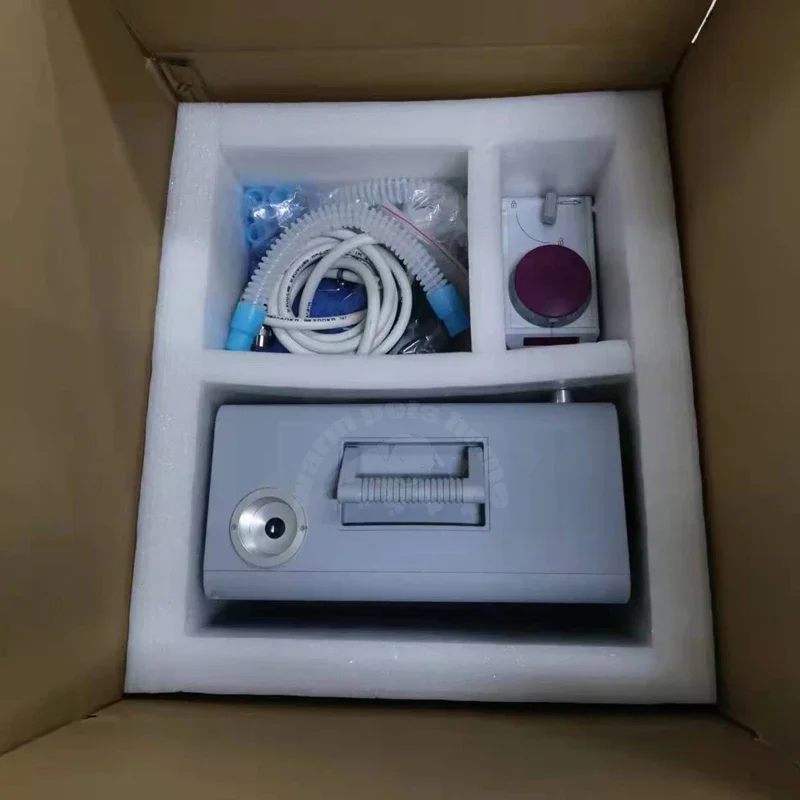

With transport case, convenient to take and transport

Easy to disassemble and assemble all the components, convenient for clean and maintenance.

Specification:

Application: 0.5~100Gkg animal

Ventilation mode: Closed, half-closed, half-open

Tidal volume( Manual Mode): 10~2000ml

Gas pressure: 0.25~0.65Mpa

Flow meter: Oxygen two tube: one tube:0.1~1,one tube:1~10L/M

APL valve: 0.5~6.0Kpa

OXYGEN Flush: 25~75L/min

I:E: As the doctor operates

BPM: As the doctor operation

Monitoring: Airway pressure, respiratory mode.

Three gauges: One for Oxygen source pressure

One for oxygen working pressure

One for airway pressure

Vaporizer

With the latest innovative design of delivery system, vaporizers deliver accurate concentration under varying conditions of variable flow rate, pressure, temperature and so on.

Stably deliver agent, automatic temperature-compensating, deliver accurate agent

Sophisticated delivery system,Stable, prompt, accurate

Various kinds of mounting types.

Safety lock device to prevent the anesthetic gas volatile accidentally.

The big view window is convenient to observe drug usage levels.

Specification

Concentration range:

Enflurane 0.2 to 5%

Isoflurane 0.2 to 5%

Halothane 0.2 to 5%

Sevoflurane 0.2 to 8%

Flow range:0.2 to 15L/min

0.2 to 10L/min(normal usage)for concentrations>5 vol%

Filling volume for agent:

About 340ml with dry wick

About 300 ml with moist wick

Mounting type:

selectatec compatible

draeger plug in

cage mount(ISO 23mm tapers)

cage mount with interlock

Weight: 18.45kg

Size: 53*59*48
